Aruba 2930 をAruba 6300にリプレースする機会があったので
その詳細をまとめました。

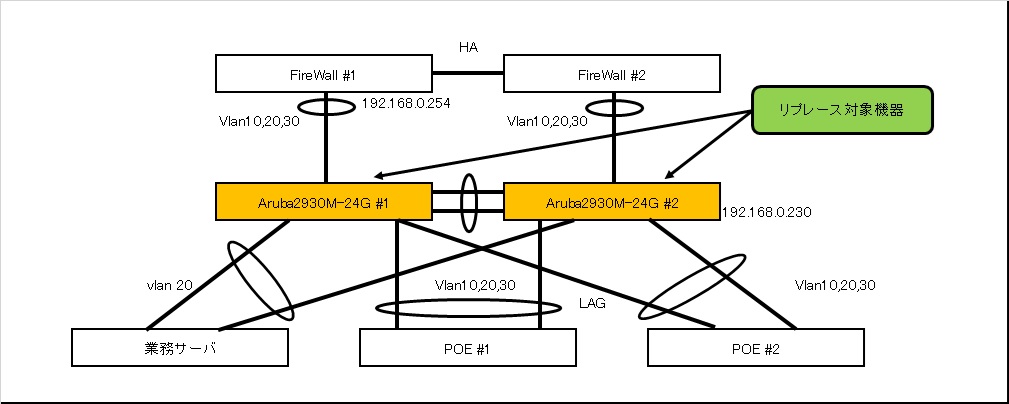

今回のネットワーク構成は以下の図を参照。
既存のAruba2930とAruba6300はコマンド体系が異なるためconfigの丸流しができません。
そのため既存から設定を読み取り置き換える必要があります。
既存コンフィグ（抜粋）
〇既存config
trunk 1/23,2/23 trk1 trunk
trunk 1/24,2/24 trk2 trunk
trunk 1/18,2/18 trk3 lacp
mac-age-time 60
timesync sntp
sntp unicast
sntp server priority 1 192.168.0.1
time timezone 540
ip default-gateway 192.168.0.254
snmp-server community “public” operator unrestricted
snmp-server community “private” operator
oobm
no ip address
member 1
no ip address
exit
member 2
no ip address
exit
exit
vlan 1
name “DEFAULT_VLAN”
no untagged 1/1-1/17,1/19-1/22,2/1-2/17,2/21-2/22,Trk3
untagged Trk1-Trk2
no ip address
exit
vlan 10
name “VLAN10”
tagged 1/21,2/21,Trk1-Trk2
no ip address
exit
vlan 20
name “VLAN20”
untagged 1/1-1/17,1/19-1/20,1/22,2/1-2/17,2/19-2/20,2/22,Trk3
tagged 1/21,2/21,Trk1-Trk2
ip address 192.168.0.230 255.255.255.0
exit
vlan 51
name “VLAN30”
tagged 1/21,2/21,Trk1-Trk2
no ip address
exit
primary-vlan 20
spanning-tree
spanning-tree Trk1 priority 4
spanning-tree Trk2 priority 4
spanning-tree Trk3 priority 4
spanning-tree force-version rstp-operation
Firewallとの接続はtagVLANで1/1/21,2/1/21
POE #1 とTRUNKで接続、Trk1を1/1/23,2/1/23
POE #2 とTRUNKで接続、Trk2を1/1/24,2/1/24
業務ｻｰﾊﾞとLACP接続で1/1/18,2/1/18
メインvlanはVLAN20を使用
上記の設定をARUBA 6300 で行うと下記のようになりました。
〇新コンフィグ
spanning-tree
interface mgmt
no shutdown
ip dhcp
interface lag 10
no shutdown
no routing
vlan trunk native 1
vlan trunk allowed 10,20,30
interface lag 20
no shutdown
no routing
vlan trunk native 1
vlan trunk allowed 10,20,30
interface lag 30
no shutdown
no routing
vlan access 20
interface 1/1/1
no shutdown
no routing
vlan access 20
interface 1/1/2
no shutdown
no routing
vlan access 20
interface 1/1/3
no shutdown
no routing
vlan access 20
interface 1/1/4
no shutdown
no routing
vlan access 20
interface 1/1/5
no shutdown
no routing
vlan access 20
interface 1/1/6
no shutdown
no routing
vlan access 20
interface 1/1/7
no shutdown
no routing
vlan access 20
interface 1/1/8
no shutdown
no routing
vlan access 20
interface 1/1/9
no shutdown
no routing
vlan access 20
interface 1/1/10
no shutdown
no routing
vlan access 20
interface 1/1/11
no shutdown
no routing
vlan access 20
interface 1/1/12
no shutdown
no routing
vlan access 20
interface 1/1/13
no shutdown
no routing
vlan access 20
interface 1/1/14
no shutdown
no routing
vlan access 20
interface 1/1/15
no shutdown
no routing
vlan access 20
interface 1/1/16
no shutdown
no routing
vlan access 20
interface 1/1/17
no shutdown
no routing
vlan access 20
interface 1/1/18
no shutdown
lag 30
interface 1/1/19
no shutdown
no routing
vlan access 20
interface 1/1/20
no shutdown
no routing
vlan access 20
interface 1/1/21
no shutdown
no routing
vlan trunk native 1
vlan trunk allowed 40,50-51
interface 1/1/22
no shutdown
no routing
vlan access 20
interface 1/1/23
no shutdown
lag 10
interface 1/1/24
no shutdown
lag 20
interface 1/1/25
no shutdown
interface 1/1/26
no shutdown
interface 1/1/27
no shutdown
no routing
vlan access 1
interface 1/1/28
no shutdown
no routing
vlan access 1
interface 2/1/1
no shutdown
no routing
vlan access 20
interface 2/1/2
no shutdown
no routing
vlan access 20
interface 2/1/3
no shutdown
no routing
vlan access 20
interface 2/1/4
no shutdown
no routing
vlan access 20
interface 2/1/5
no shutdown
no routing
vlan access 20
interface 2/1/6
no shutdown
no routing
vlan access 20
interface 2/1/7
no shutdown
no routing
vlan access 20
interface 2/1/8
no shutdown
no routing
vlan access 20
interface 2/1/9
no shutdown
no routing
vlan access 20
interface 2/1/10
no shutdown
no routing
vlan access 20
interface 2/1/11
no shutdown
no routing
vlan access 20
interface 2/1/12
no shutdown
no routing
vlan access 20
interface 2/1/13
no shutdown
no routing
vlan access 20
interface 2/1/14
no shutdown
no routing
vlan access 20
interface 2/1/15
no shutdown
no routing
vlan access 20
interface 2/1/16
no shutdown
no routing
vlan access 20
interface 2/1/17
no shutdown
no routing
vlan access 20
interface 2/1/18
no shutdown
lag 30
interface 2/1/19
no shutdown
no routing
vlan access 20
interface 2/1/20
no shutdown
no routing
vlan access 20
interface 2/1/21
no shutdown
no routing
vlan trunk native 1
vlan trunk allowed 40,50-51
interface 2/1/22
no shutdown
no routing
vlan access 20
interface 2/1/23
no shutdown
lag 10
interface 2/1/24
no shutdown
lag 20
interface 2/1/25
no shutdown
interface 2/1/26
no shutdown
interface 2/1/27
no shutdown
no routing
vlan access 1
interface 2/1/28
no shutdown
no routing
vlan access 1
interface vlan 1
no ip dhcp
interface vlan 10
interface vlan 20
ip address 192.168.0.230/24
interface vlan 30
ip route 0.0.0.0/0 192.168.0.254
ポート1個づつ設定が必要になるのでconfigが長くなりますが
定義した要件を満たすとこのようなconfigになりました。
機器のスタックはケーブルを接続して筐体のスタックボタンを押すだけで
自動で構成されるのは便利ですが設定を投入するのがかなり手間でした。
後継機種ということですがconfig丸流しできないのが残念です。
自動で構成できる分楽に感じる点もありますがコマンド打ち込む分も考えると
楽になっているのは判断が難しいところです。
